Non-Leakage Gas Gas Heater (GGH)

Air Quality Control Systems (AQCS)

Outline



This equipment recovers heat from the untreated flue gas and reheats the treated flue gas for FGD plants without any flue gas leakage from the untreated side and vice versa. To comply with increasingly more stringent emission regulations, this type of GGH is indispensable.

Non-Leakage Gas Gas Heater (GGH)-01.jpg

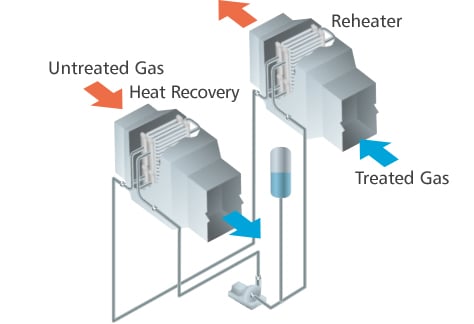

Fin Tube Embedded in GGH
Non-Leakage Gas Gas Heater (GGH)-02.jpg

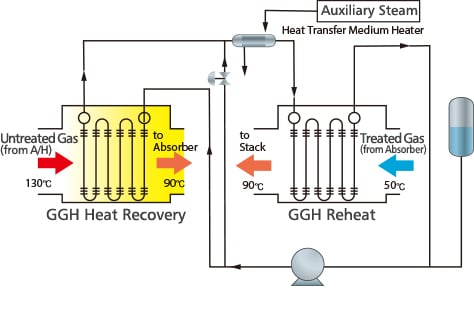

Typical Configuration
Non-Leakage Gas Gas Heater (GGH)-03.jpg
Typical Flow Sheet
