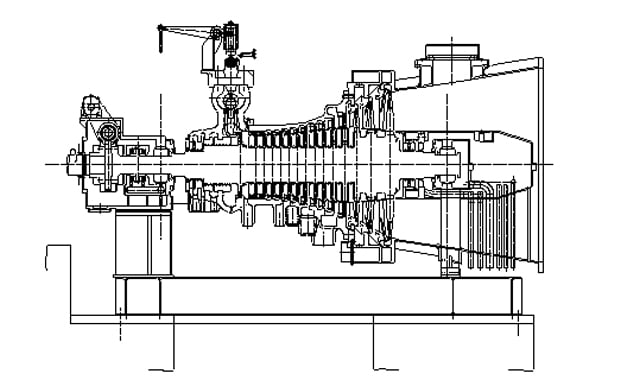

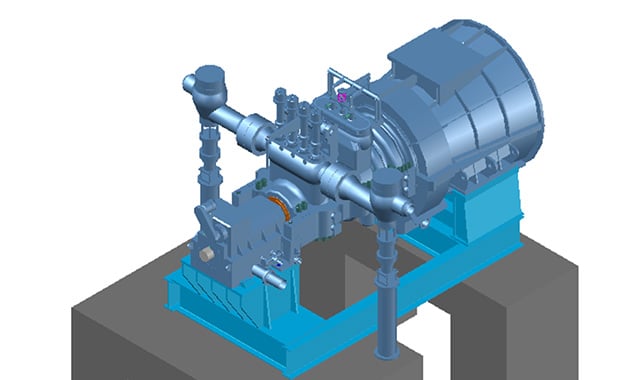

Small/Mid-sized Condensing Turbines

Characteristics

Condensing steam turbines are employed when steady and continuous power generation is the main requirement. These turbines are recommended for plants where high reliability in power generation is required or in waste-heat recovery plants where power is generated from inexpensive fuels.
While the main steam flows through the turbine and into the condenser, steam can also be bled from the turbine for feedwater heating to increase overall plant efficiency.


Steam Turbine Specifications

Type Condensing turbine
No. of casings Single casing
Output Up to 200 MW Class
Main steam conditions Up to 13.7 MPa / Up to 566°C
Revolutions per minute 3,000 min-1 (50 Hz) / 3,600 min-1 (60 Hz)
