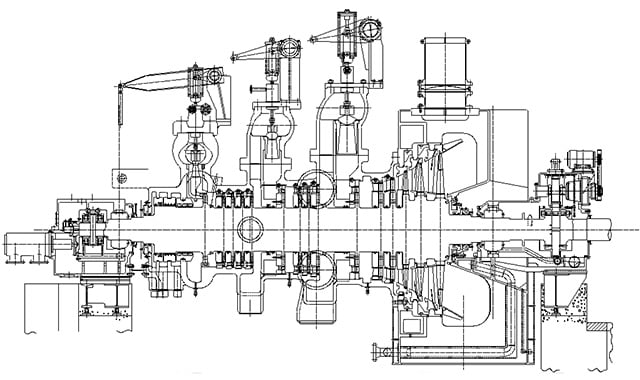

Extraction-condensing Turbines


Extraction-condensing turbines are employed when steady power generation and steam extraction at a fixed pressure is required. Based on the customer' s plant requirements, more than one type of extraction can be obtained from the steam turbine for processes in the plant.
Extraction pressure is controlled internally in the turbine, allowing a wide range of extraction flow rates.
Extraction can also be carried out within a wide range of operating load points.

Steam Turbine Specifications

Type Extraction-condensing turbine
No. of casings Single casing
Output Up to 150 MW
Main steam conditions Up to 13.7 MPa / Up to 566°C
Revolutions per minute 3,000 min-1 (50 Hz) / 3,600 min-1 (60 Hz)
